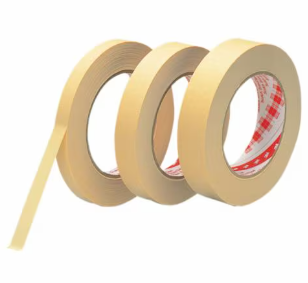

Masking & Protective Tape
- Introduction
- Masking and protective tape is a functional tape designed for "temporary, stage-specific missions." Throughout product manufacturing, surfaces frequently undergo treatment processes such as painting, powder coating, electroplating, sandblasting, anodizing, or high-temperature welding. To prevent these harsh external chemicals, paints, or extreme heat from damaging pristine areas, masking tape is applied to "isolate" specific zones. Its purpose is not permanent bonding, but rather to "hold the line firmly during processing, and depart flawlessly upon completion."
- Download
This product is a functional tape specifically engineered for "stage-specific surface protection" during industrial manufacturing processes. Its structure primarily consists of a composite blend featuring a Carrier (Backing), a High-Cohesion Pressure-Sensitive Adhesive (PSA), and a Surface Anti-Seepage Coating:
Backing Options: Depending on process requirements, backings are available in Crepe Paper, Washi Paper, and High-Polymer Films (such as PET and PI Polyimide). Paper-based backings utilize irregular fiber structures to provide excellent conformability to three-dimensional shapes and convenient hand-tearability. Film-based backings, on the other hand, offer exceptional ultimate tensile strength and dimensional stability, delivering ultra-sharp paint lines and boundary definition.
Protective Mechanism: The tape surface is typically treated with a micro-release coating to control unwind force and prevent paint from transferring back onto the film. The entire material exhibits outstanding temperature stability (withstanding baking processes ranging from -10°C to 300°C depending on the specific model), chemical/agent resistance, and electrical insulation properties. It adheres firmly without peeling during operation, serving as a rigid barrier to thoroughly isolate surfaces that do not require processing.
Premium Temperature & Chemical Resistance: It can endure high temperatures ranging from standard room-temperature baking to over 260°C (such as wave soldering processes in electronics manufacturing) while resisting the penetration of solvents, acids, bases, and paints.
High Sharpness & Anti-Seepage Edges: Premium masking tape offers superior adhesion, completely preventing paint from seeping into edges via capillary action. This ensures perfectly sharp, clean separation lines upon removal.
Clean Removal Without Residue: Even after exposure to high-temperature ovens or chemical baths, the adhesive remains highly stable. It lifts off cleanly without leaving sticky residue, eliminating secondary cleaning costs.
Excellent Conformability & Hand-Tearability: Paper backings can be easily bent and conformed to complex curved surfaces. Line operators can tear the tape effortlessly by hand, significantly boosting manufacturing efficiency.
The application of masking and protective tape spans across traditional heavy industries to high-tech semiconductor sectors:
Automotive & Shipbuilding Paint Coating: During vehicle body spraying or two-tone painting processes, it masks windows, interiors, or zones requiring different colors, successfully enduring the high-temperature baking of automotive paint ovens.
PCB Manufacturing & Electronics Assembly: During wave soldering processes for printed circuit boards, it is used to mask gold fingers or sensitive components, protecting them from contamination by high-temperature molten solder.
Architectural Decoration & Glass Curtain Wall Installation: During silicone sealant (caulking) application or exterior wall spraying, it defines clean lines and prevents excess adhesive or coating from staining adjacent stone, glass, or aluminum frames.
Metal Surface Treatment (Electroplating / Anodizing / Sandblasting): Under the high-pressure impact of sandblasting machines or anodizing treatments, it firmly protects precision metal surfaces from chemical corrosion and physical impact.
